CyBio Well vario

Name: CyBio Well vario
Brand: Analytik Jena
SKU: smac-86

96, 384 and 1536 channel simultaneous pipettor

Product Details

Multiple Heads on a Solid Base

The CyBio Well vario includes an automated base which accepts different interchangeable simultaneous pipetting heads. The heads can be changed quickly and easily either at the front or the back of the instrument. After head exchanges the calibration maintains. A working volume range of four orders of magnitude allows liquid transfers from 25 nl up to 250 µl on one platform, either with 96 or 384 disposable tips. The CyBio Well vario adapts into any screening environment and it is compatible with all other accessories of the CyBio Well family.

The innovative CyBio Composer Software. supports the flexibility of the system and immediately detects the new head.

Extremely flexible through enormous volume spectrum
Highest precision in the whole volume range
Unique pipetting technology prevents cross contamination
Easy application set-up using CyBio Composer software
Saves reagent costs with accurate low volume pipetting

Applications

Plate Replication
Plate Reformatting
Cell culture medium exchange
ELISA
Reagent addition
Plate coating
Dilution
DNA extraction
HTRF Assay

Pipetting heads

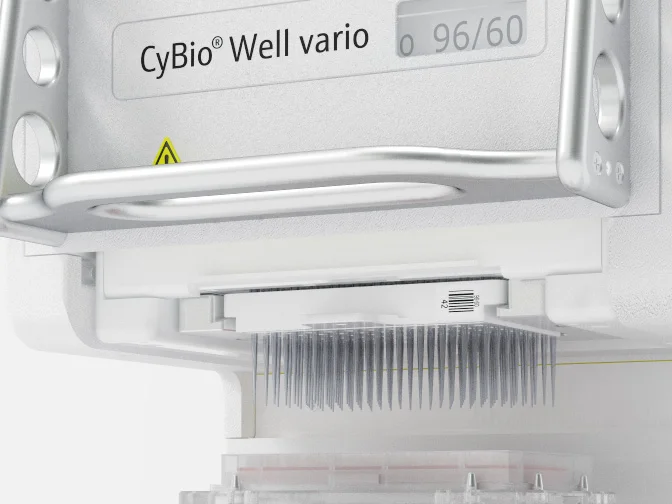

Head 96/25 µl	Parallel pipetting of 96 samples in 96, 384 and 1536 well microplates Volume freely selectable in 0,01 µl steps with a working volume up to 25 µl.
Head 96/60 µl	Parallel pipetting of 96 samples in 96, 384 and 1536 well microplates Volume freely selectable in 0,01 µl steps with a working volume up to 60 µl.
Head 96/250 µl	Parallel pipetting of 96 samples in 96, 384 shallow or deep well microplates Volume freely selectable in 0.01 µl steps with a working volume up to 250 µl.
Head 384/25 µl	Parallel pipetting of 384 samples in 384 and 1536 well microplates Volume freely selectable in 0.01 µl steps with a working volume up to 25 µl.
Head 384/60 µl	Parallel pipetting of 384 samples in 384 and 1536 well microplates Volume freely selectable in 0.01 µl steps with a working volume up to 60 µl.
Head 1536/8 µl	Parallel pipetting of 1536 samples in 1536 well microplates Volume freely selectable in 0.01 µl steps with a working volume up to 8 µl.
Capillary Head	Optimized for pipetting of DMSO solutions into dry microplates Available with fix working volumes of 50, 100, 250, 500 nl with ceramic capillaries parallel pipetting of 96 or 384 samples in 96, 384 an 1536 well microplates due to exchangeable magazines.

TECHNICAL SPECIFICATIONS

	Volume range:	Precision [CV in %]* of specified volume range:
Head 96/25 µl	0.5-25 µl	0.5 ≤ 10% 2-5 µl ≤ 2% >5-25µl ≤ 1%
Head 96/60 µl	1–60 µl	3-5 µl ≤ 2% >5-60 µl ≤ 1%
Head 96/250 µl	5-250 µl	25-100 µl ≤ 2% 25-250 µl ≤ 1%
Head 384/25 µl	0.5-25 µl	2-5 µl ≤ 2% >5-25 µl ≤ 1
Head 384/60 µl	1–60 µl	3-5 µl ≤ 2% >5-60 µl ≤ 1%
Head 1536/8 µl	1–8 µl	1-5 µl ≤ 3% 5-8 µl ≤ 2%
Capillary Head	0.050-1 µl	0.025-1,0 µl ≤ 10%

TECHNICAL DATA

Footprint (W x D in mm)

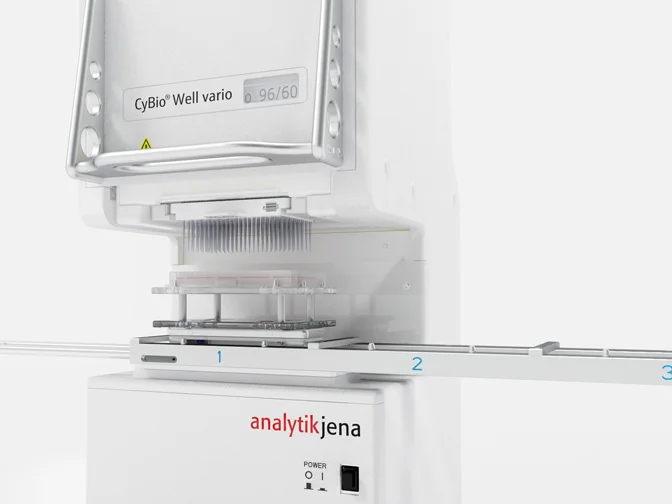

3-place linear transporting unit	960 x 370 mm
4-place linear transporting unit	1300 x 370 mm
5-place linear transporting unit	1650 x 370 mm
10-place circular transporting unit	700 x 895 mm

Volume Range

Wet pipetting:	50 nl bis 250 μl
Dry pipetting:	200 nl bis 250 μl

Weight

39,5 kg	3,4 and 5 place linear transporting unit
49 kg	10-place circular transporting unit

Plate Capacity

3 with 3-place linear transporting unit
4 with 4-place linear transporting unit
5 with 5-place linear transporting unit
10 with 10-place circular transporting unit

Pipette Channel

96, 384, 1536

Pipetting Tips

Disposable tips/capillaries

Plate Formats
