CyBio SELMA

Name: CyBio SELMA
Brand: Analytik Jena
SKU: smac-85

Semi-automatic 96- or 384-fold pipettor with Minimal required space

Product Details

Precise and semi-automatic pipettor with 96 or 384 pipetting channels for easy and fast filling of 96- and 384-well microplates without the use of a computer. Applications like replication and reformatting, medium exchange as well as serial dilution can be executed reproducible and convenient.

Fast and precise processing of 96- and 384-well microplates without computer

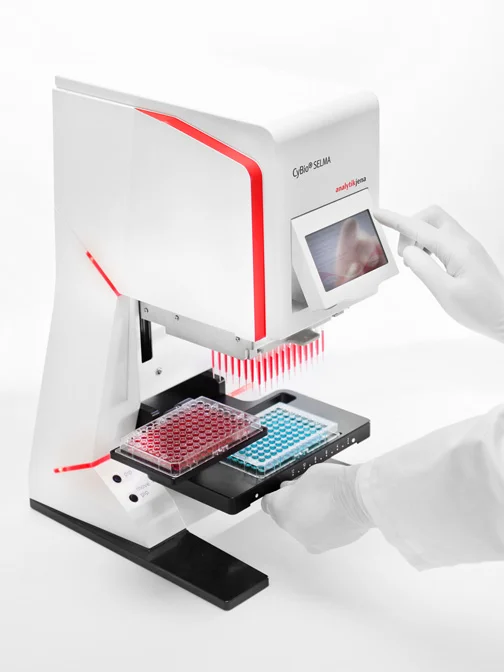

Simple and intuitive handling with touch screen
Easy and fast tip changing with ready to use CyBio TipTrays
Error-free and reproducible results due to 96 or 384 parallel pistons and proven tip sealing principle
Reminder function and automatic use of pipetting heights and parameters for the processing of several microplates
An open design allows the use of external devices like shaker, vacuum chamber, heating adapters, etc.
Applications such as replication and reformatting of microplates as well as serial dilutions can be execute in seconds

Applications

Plate Replication
Plate Reformatting
Cell culture medium exchange
ELISA
Reagent addition
Plate coating
Dilution
DNA extraction
HTRF Assay

Product Information

CyBio SELMA | Manual Pipetting

Precise and semi-automatic pipettor with 96 pipetting channels for easy and fast filling of 96- and 384-well microplates without the use of a computer. Applications like replication and reformatting, medium exchange as well as serial dilution can be executed reproducible and convenient.

CyBio SELMA | Automation Pipetting

CyBio SELMA | Dispensing

Variants

CyBio SELMA 96/25 µl

Semi-automated pipetting station, instrument system stand alone, including a 96 channel pipetting head from 0.5 till 25 µl and 2 working positions for 96 well plates

CyBio SELMA 96/60 µl

Semi-automated pipetting station, instrument system stand alone, including a 96 channel pipetting head from 1 till 60 µl and 2 working positions for 96 well plates

CyBio SELMA 96/250 µl

Semi-automated pipetting station, instrument system stand alone, including a 96 channel pipetting head from 5 till 250 µl and 2 working positions for 96 well plates

CyBio SELMA 96/1000 µl

Semi-automated pipetting station, instrument system stand alone, including a 96 channel pipetting head from 10 till 1000 µl and 2 working positions for 96 well plates

CyBio SELMA 384/25 µl

Semi-automated pipetting station, instrument system stand alone, including a 384 channel pipetting head from 0.5 till 25 µl and 2 working positions for 384 well plates

CyBio SELMA 384/60 µl

Semi-automated pipetting station, instrument system stand alone, including a 384 channel pipetting head from 1 till 60 µl and 2 working positions for 384 well plates

TECHNICAL SPECIFICATIONS

Pipetting heads	Precision* (cv in %)
96/1000 µl pipetting head:	25-100 µl ≤ 2%
	100-1000 µl ≤ 1%
96/250 µl pipetting head:	10-25 µl ≤ 2%
	25-250 µl ≤ 1%
96- oder 384/60 µl pipetting heads:	3-5 µl ≤ 2%
	5-60 µl ≤ 1%
96- oder 384/25 µl pipetting heads:	2-5 µl ≤ 2%
	5-25 µl ≤ 1%

TECHNICAL DATA

Weight

CyBio SELMA 96:	ca. 15
CyBio SELMA 96/1000 µl:	ca. 20
CyBio SELMA 384:	ca. 15

Plate formats

CyBio SELMA 96:	CyBio SELMA 384:
96 / 384 (optional accessories are available)	384

Height (mm)

CyBio SELMA 96:	480
CyBio SELMA 96/1000 µl:	520
CyBio SELMA 384:	480

Pipet tips

CyBio SELMA 96:	CyBio SELMA 384:
Disposable tips	Disposable tips

Positions

CyBio SELMA 96:	CyBio SELMA 384:
2	2

Footprint (BxT in mm)

CyBio SELMA 96:	CyBio SELMA 384:
307 x 325	307 x 325

Pipette channels

CyBio SELMA 96:	CyBio SELMA 384:
96 channels in parallel	384 channels in parallel

Column wise pipetting

CyBio SELMA 96:	CyBio SELMA 384:
yes (optional accessory)	yes (optional accessory)

Volume Range

CyBio SELMA 96:	CyBio SELMA 384:
0,5-1000	0,5 - 60
