CyBio FeliX

Automated liquid handling made easy

CyBio FeliX — Designed for your Lab

Is time of the essence? Is your laboratory space limited? Would you like to save on costs? Then we have the pipetting platform for you. Optimize your work processes with CyBio FeliX, a liquid handling system adaptable to your requirements.

  • Time-saving – the fully automatic system allows you to concentrate on future application developments
  • Space-saving – compact design for every laboratory
  • Individual – Adaptable and flexible, CyBio FeliX can be expanded to meet your needs
  • Cost-saving – With its interchangeable heads and adapters, CyBio FeliX allows you to save by miniaturizing samples and reagents.

Free yourself from repetetive manual pipetting

Save valuable laboratory space

Expand your experimental possibilities

Be ready for upcoming developments

Analytik Jena
CyBio FeliX
Need Assistance?

Contact us for expert advice for your needs and budget.

CyBio FeliX

Fully automatic multichannel pipetting system

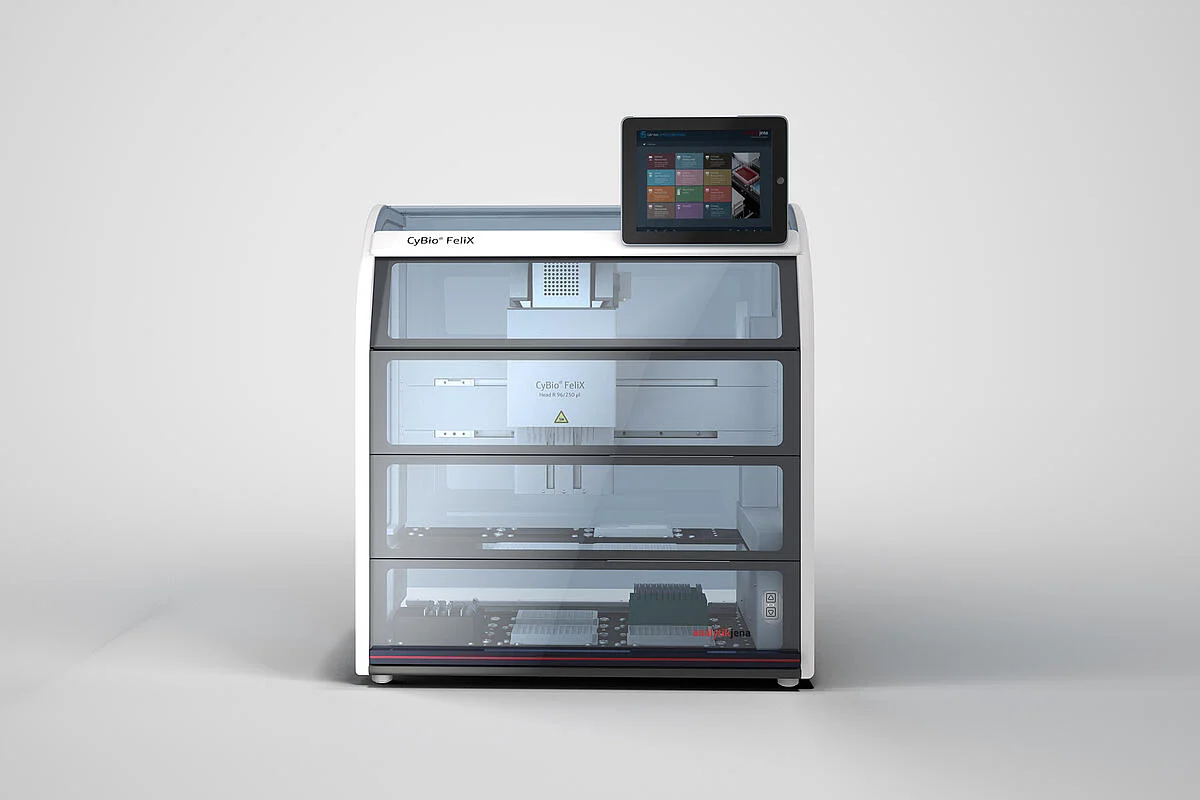

The CyBio FeliX is a flexible and fully automatic multi-channel pipetting robot. The modular system consists of a basic unit, with a unique two-level deck system and easy-to-change pipetting heads. The pipetting heads can automatically switch between different pipette tip magazines, pipetting tools, and other instruments (such as grippers). Further accessories such as tip-washing stations, reservoirs etc. are available as well.

  • Unique, compact design with 12 positions on 2 levels

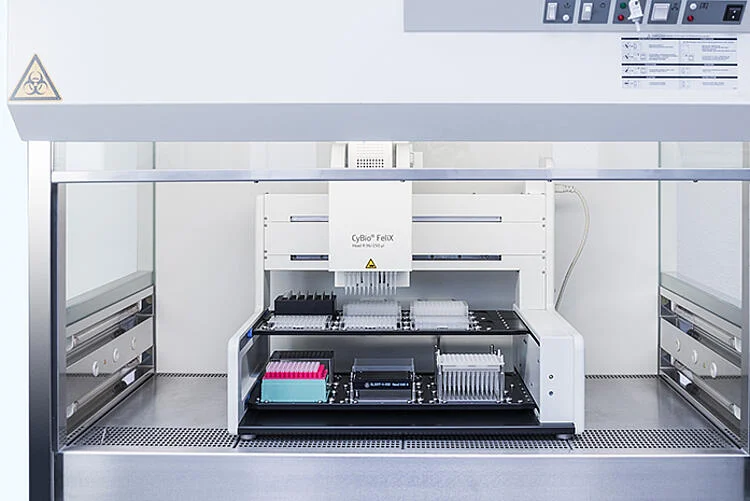

  • Closed stand-alone system, optionally without housing for a laminar flow workbench and for integration into automation systems
  • Flexible pipetting system for 1 - 384-channel operations featuring exchangeable pipetting heads and an automatic change of liquid handling adapters

#HowToFeliX

CyBio FeliX is a versatile and flexible pipetting platform. Whether MALDI sample preparation, genetic engineering, nucleic acid extraction, cell application and many more – the CyBio FeliX is suitable for the automation of virtually every laboratory workflow.

CyBio FeliX

Automated nucleic acid extraction and (q)PCR setup

The combination of CyBio FeliX and the corresponding Extraction Set offers the solution for automated nucleic acid extraction in the 96-well format, which is coordinated down to the smallest detail. With only a few additional configurations the CyBio FeliX can also be used for the subsequent creation of a (q)PCR setup.

CyBio Composer Software

  • Powerful scripting environment
  • Direct access to all hardware functions and liquid handling parameters
  • Possibility of connecting to databases and LIMS systems

TECHNICAL SPECIFICATIONS

 Basic Unit (FeliX)Clean bench (FeliX)Automation (FeliX)
Weightapprox. 50 kg (without Pipetting head) approx. 40 kg (without Pipetting head) approx. 55 kg (without Pipetting head)
Deck Positions121212

Pipetting Channels

1 – 3841 – 3841 – 384
Pipetting TipsDisposable tipsDisposable tipsDisposable tips
Plate Formats24, 96, 38424, 96, 38424, 96, 384
Tubes0.2 ml – 5.0 ml0.2 ml – 5.0 ml0.2 ml – 5.0 ml
Footprint (W x D)650 x 450 mm699 x 450 mm876 x 503 mm
Height 698 mm637 mm668 mm
Volumen Range1 µl – 1000 µl1 µl – 1000 µl1 µl – 1000 µl
